Quick Details

  • Properties: Medical X-ray Equipments & Accessories
  • Brand Name: Ysenmed
  • Model Number: YSDR-C32 / YSDR-C50
  • Place of Origin: Guangdong, China (Mainland)
  • Model name: digital x-ray
  • high voltage generator: 50KW, 100KHz, 40-150kV
  • Double Focus: 0.6mm, 1.2mm
  • Tube: Import Toshiba Tube
  • Heat Capacity: 200kHU
  • Image Detector: 15" *17" KODAK single CCD+ CsI
  • Limit space resolution: ≥3.4 Lp/mm
  • Work Station: 1GB RAM, Hard Disk 320GB
  • Image pixels: ≥9 million
  • A/D transfer coefficient: 16bit

Packaging & Delivery

Packaging Details Standard Export Package for digital x-ray
Delivery Time To be shipped in 15 days after payment.

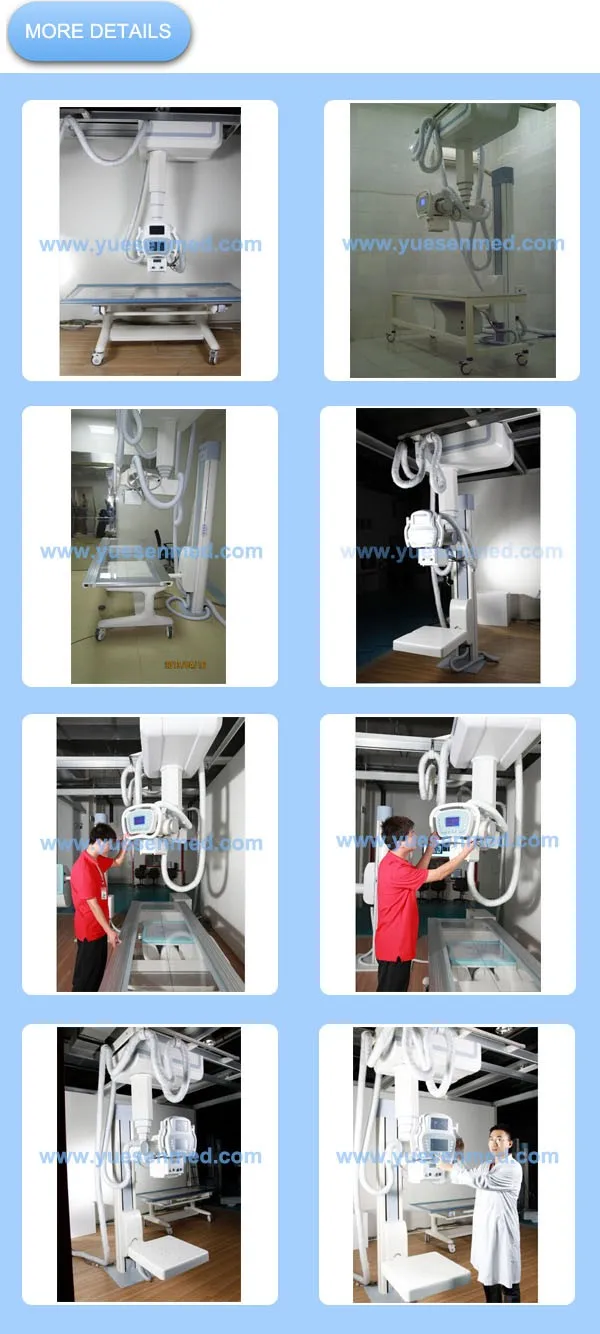

YSDR-C32 / YSDR-C50 high frequency

50kw ccd detector Suspension digital x-ray







digital x-ray







Configuration and Parameter List

for Suspension CCD DR

Main Use

Used to all over filming inspection: chest, skull,

abdomen, spine, pelvis and limbs etc.

Name

Qty

Performance and Parameter

Import CPI high

frequencyand high

 voltage generator

1

Power: 50KW ; Work Frequency:100KHz

Photographing kV: 40-150kV

Photographing (mAs): 500mAs

Import Toshiba7242EX Tube

1

Focus: 0.6/1.5mm; Photographing kv:40--125kV

Heat Capacity: 200kHU

Photographing Shelf

1

Suspension  Photographing  Shelf

Photographing Bed

1

Mobile Photographing Bed

KODAK single

CCD+ CsI

Image Detector

1

Photographing size:≥17*15 inch

Image pixels ≥9 million

Limit space resolution≥3.4 Lp/mm

A/D transfer coefficient: 16bit

Automatic Exposure

System

1

Import solid-state ionization chamber automatic

exposure system

One-touch

Automatic Exposure

Software

1

For real automatic exposure software system,

doctors only need to press down hand brake to

finish exposure operation instead of setting

exposure parameter manually.

Image-collecting

Work Station

1

Dell work station: Dual-core 2.5GHz, 1GB RAM,

Hard Disk 320GB, 19 inch liquid crystal detector (1 set),

100M network  interface, DICOM3.0 interface

Image Collecting and

Disposing Software

1

automatic /automatic window width / window level,

preset  window width / window level, positive and

negative image turning, image turning, image rotation,

image amplification and roaming, labeling and measuring,

splitting, automatic electron cutting, part amplification,

recovering original image

*Edge enhancement: automatically distinguish and

analyze image, enhance image edge sharpness.

*Dynamic scope optimization: automatically compress

dynamic curve of original images for convenient diagnose.

*High-frequency image enhancement:enhance image contrast,

improve detail resolution, obviously improve small images

such as bone trabecula’s .

* Noise suppression:automatically filter mixed signal,

obviously  reduce image noise,improve image signal-to-noise

ratio.

Other Parts

1/each

Import Grid;Import Beam Limit Device;High Speed Data

Transmission Wire

Optional



Digital Image Work Station Software



ZK-PACS Image Storage Transmission System



Film Printer

digital x-ray
digital x-ray
digital x-ray
digital x-ray
digital x-ray

digital x-ray
digital x-ray
