medical transport baby incubator

FOB Reference Price:Get Latest Price
$5,099.00 - $5,599.00 / Sets | 1 Set/Sets baby incubator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Ysenmed
Model Number:
YSBT-100
Place of Origin:
Guangdong, China
Power supply:
AC220V-230V/50Hz Or AC110-120V/50-60Hz
Mode of control:
Air mode and baby mode controlled by micro-computer
DC Power supply:
DC12V/10A or DC24V/6A
Input power:
400VA
Temperature variability:
≤1.0°C
Baby temperature control range:
25°C-37°C(Override mode 37-38°C)
Temperature uniformity:
≤1.5°C
Accuracy of skin temperature sensor:
≤0.3°C
Operating at temperature equilibrium:
90min
Noise inside hood:
≤52dB(A)
Supply Ability
Supply Ability:
200 Set/Sets per Month baby incubator
Packaging & Delivery
Packaging Details
standard export package of baby incubator
Port
GUANGZHOU
Lead Time :
within 14 workdays after payments

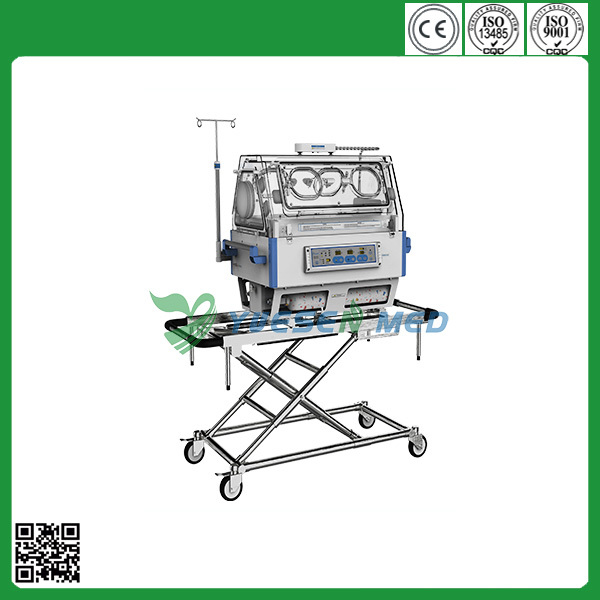

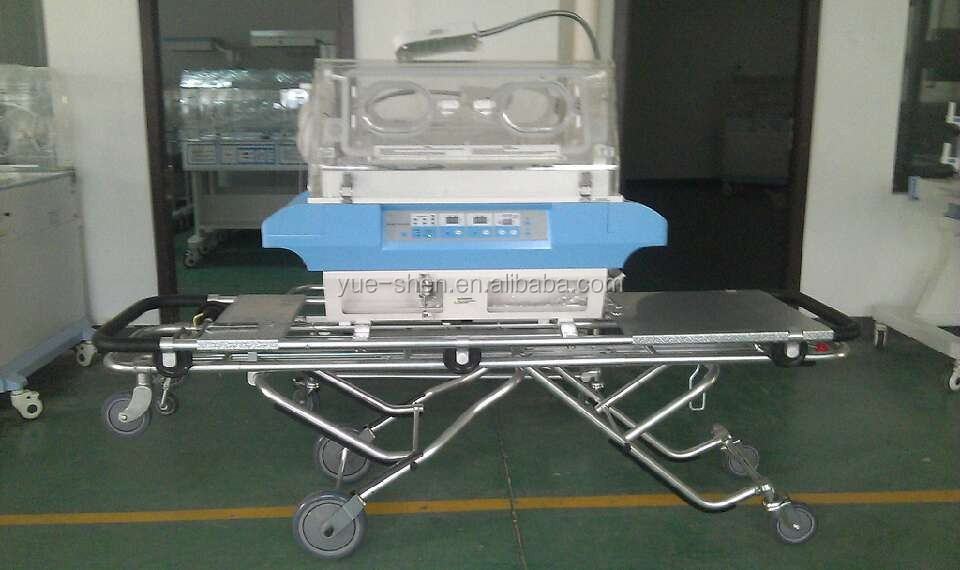

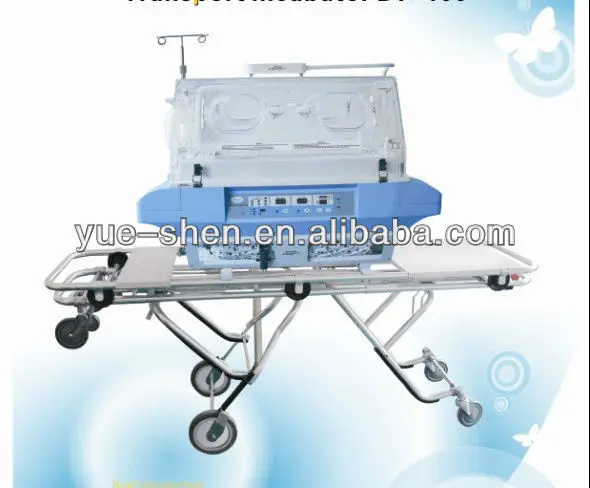

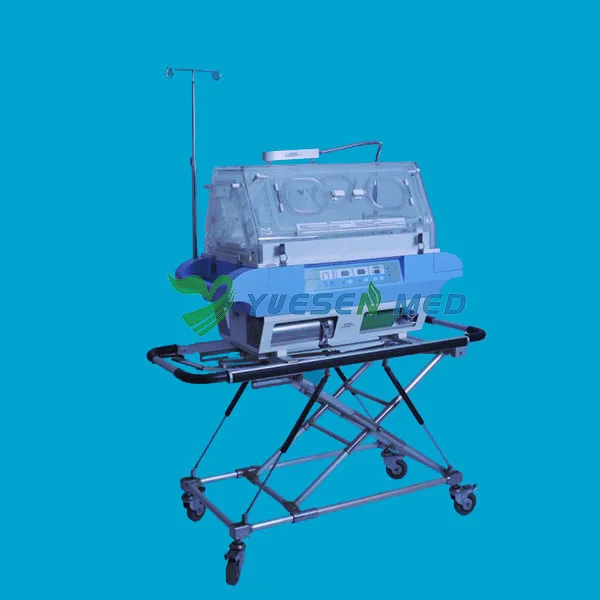

medical transport baby incubator

Model :  YSBT-100






Brief introduction:

Air mode and Baby mode controlled by micro-computer

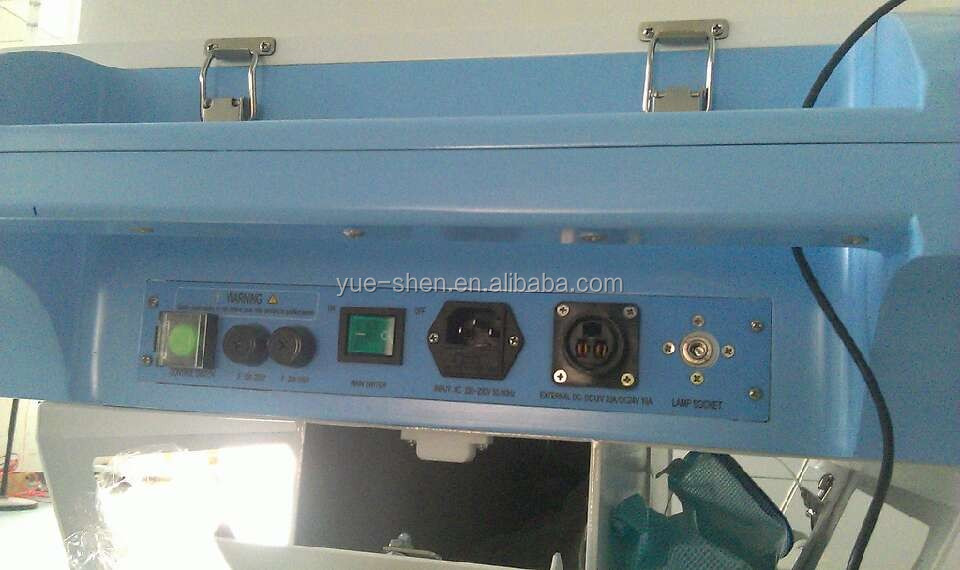

Use AC Power and DC Power alternatively,DC 12V or DC 24V Power on the ambulance

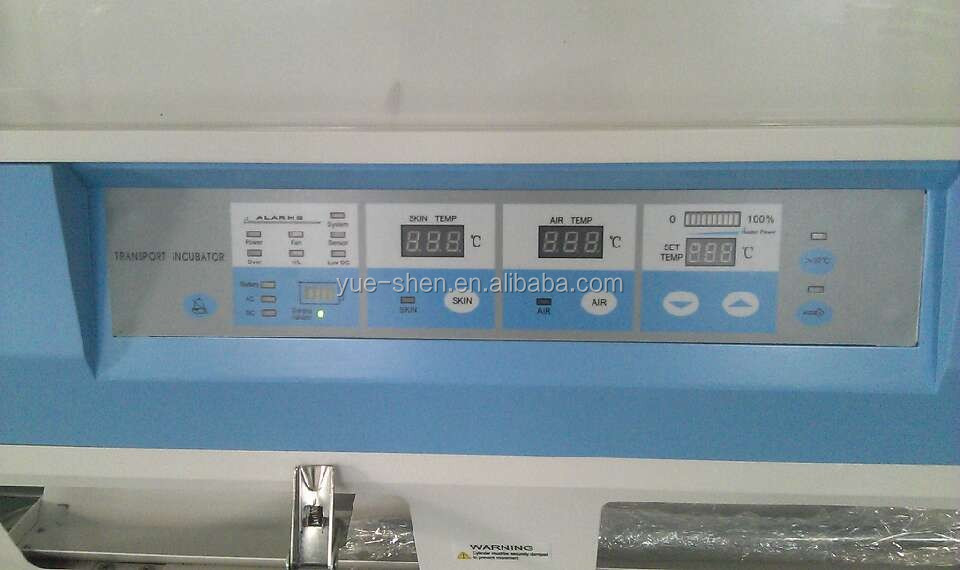

Set temperature, air temperature, baby temperature and internal battery voltage can

    be displayed separately

Double wall hood with side door so that the bassinet can be pulled outfrom it

Natural air flow humidity

The height of whole unit can be adjusted

Oxygen cylinder and Oxygen supply system

Observation lamp, adjustable brightness



Technical data of  transport baby incubator:

Power supply                                      AC110/220V   60/50Hz

Power input                                       260W

Operating environment Ambient  temperature         10°C~30°C

Operating environment Relative humidity              30%~75%RH

Operating environment Air velocity of flow             <1m/s

Operating environment Atmospheric pressure           700hPa~1060hPa

Air Temperature control range                        25°C~38°C

Skin temperature control range                       32°C~37.5°C

Air/Skin temperature sensor accuracy                 ±0.3°C

Temperature fluctuation                             ±1°C

Uniformity of mattress temperature                   ≤1.5°C

Air temperature deviation alarm                     ±3.0°C

Skin temperature deviation alarm                    ±1.0°C

Warm-up time                                     ≤40min

Internal noise level                                 ≤60dB(A)

Main battary                                      DC12V 40AH,Li-ion battery

Auxiliary battery                                   DC8.4V 0.17AH,Li-ion battery

Air filter                                          0.5μm



Product main characteristic

Fan with low noise and long life-span

Temperature deviation and over temperature could be amended in front panel diredtly

A second thermal cut-out function for more safety

Six operating windows,two side access operating windows can be swiveled

Double wall hood and with white LED observe lamp

With two oxegen cylinder and oxygen flow meter

An adjustable height trolley can be optional



Standard configuration & Optional parts

Standard configuration:

Main body ( including the transparent double hood, control system, infant bed,

mattress,skin temperature sensor,two oxygen cylinder,IV pole and observe lamp )

Optional parts:

Trolly ( two specifications for option )



Package

 Each unit packed in two wooden crate:

 Size (hood and controller):1090X 625 X 845(mm) N.W.:60.5Kg  G.W: 110Kg

Trolley:1405*650*940(mm)or 2080*640*470(mm) N.W.:27Kg G.W:57Kg or N.W.:35Kg G.W:65Kg



Transport and storage:

  Environment Temperature:-40°C~ +55°C

  Environment Relative Humidity: ≤95%

Atmospheric Pressure: 500~1060hPa
