YSX-C35 high frequency mobile c-arm x-ray scanning machine

FOB Reference Price:Get Latest Price
$21,700.00 - $22,000.00 / Sets | 1 Set/Sets x-ray scanning machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Properties:
Medical X-ray Equipments & Accessories
Brand Name:
YSENMED
Model Number:
YSX-C35
Place of Origin:
Guangdong, China
C-arm bracket rotation:
115°
Fluoroscopy mode:
40-110KV
Vertical movement:
400mm(electro motion)
X-ray tube f0ous-distance:
100cm
Radiography mode:
40-110KV(Step length-1KV) 23-71mA
Digital exposure mode:
40-110KV(Step length-1KV) 0.1-20mA
Backward-forward movement:
200mm(electro motion)
C-arm rotation:
±180°
Pulse-fluoroscopy mode:
40-110KV(Step length-1KV) 0.1-10mA
X-ray tube unit:
(Stationary anode) 0.6*0.6mm 1.5*1.5mm
Supply Ability
Supply Ability:
200 Set/Sets per Month x-ray scanning machine
Packaging & Delivery
Packaging Details
standard packing forx-ray machine
Port
Guangzhou
Lead Time :
20 working days for x-ray machine

YSX-C35 high frequency mobile c-arm x-ray scanning machine









Product Introduction:



Its clinical applications include orthopedics (arthroplasty, joint nailing, joint fluoroscopy,

restoration and fixation for bone injury in emergency), radiology (abdominal organ angiography, gastrointestinal fluoroscopy),gynecology (uterus angiography), urology (kidney and bladder

angiography), surgery (pacemaker implantation,peripheral vascular examination, etc.) and so on.



Key Features:



1.Adopts the true digital high frequency host, gets the clearest and richest image with minimum

dose, greatly reduces the potential harm of x-ray to clinicians and patients.

2.The unique double displays make operation intuitive, easy and reliable.

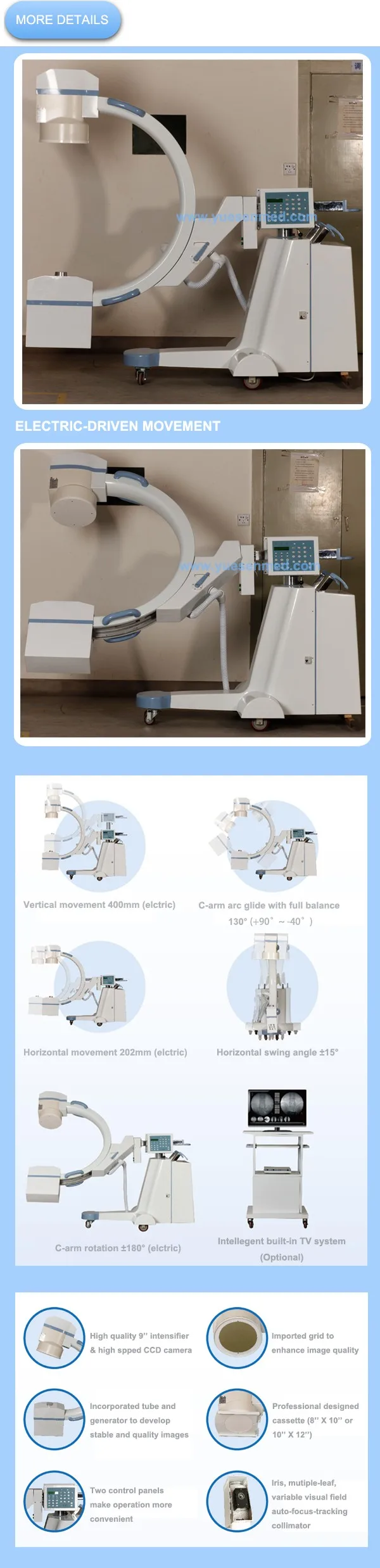

3.The vertical and horizontal movements and rotation of C-arm are all electric maneuvered

4.Micro-computer based controller features with failure self-diagnostic function, easy maintenance.

5.Digital interfaces optionally equip with picture collection & storage workstation, directly

upgrade the digitalimage system, to provide a short cut for your heavy file management.



Upgraded Digital Image System:



1.Up to 100,000 static images stored in hard disk

2.Multi-image simultaneously display

3.Image processing functions: rotation, overturn lightness and contrast adjustment

4.Diagnostic report by laser printer



Technical Data:



High Frequency Mobile X-ray C-arm Machine

Configuration A

Configuration B

Generator Power / Frequency

3.5kw / 40KHz

5kw / 40KHz

Radiography KV

40-110 KV

40-120 KV

Radiography mA

30-70mA

24-70mA

Fluoroscopy KV

40-110 KV

40-120 KV

Fluoroscopy mA

0.1-5mA

0.1-5mA

Pulse Fluoroscopy

0.1-8mA

0.1-8mA

Focus Size

0.6×1.5mm  Stationary Anode

0.6×1.5mm Rotation Anode

Anode Heat Capacity

30 KJ (40 KHU)

150 KJ (200 KHU)

Heat Capacity of

500 KJ (667 KHU)

600 KJ (800 KHU)

Collimator

Iris, auto-brake, variable visual field, double leaf

Focus-to-Image Intensifier Distance (SID)

1000 mm

1000 mm

C-arm Depth

730 mm

730 mm

C-arm Open

815 mm

815 mm

C-arm are glide with full balance

115°

115°

C-arm Rotation (Motored)

±180°

±180°

Upward and Downward Movement (Motored)

400 mm

400 mm

Forward and Backward Movement (Motored)

200 mm

200 mm

Horizontal swing angle

±12.5°

±12.5°

Image Intensifier

9 Metal Screen Intensifier

Camera

High Speed CCD Camera

Monitor

14 High resolution Monitor

Panel

Two Operation Panels, automatic display error codes

Image Memory

Store 8 images, freeze the last image, multilevel denoise, double displays in one screen

Supply Power

220V, 50Hz, 20A

Power Capacitor

4KVA
