Hospital good quality flat portable digital x ray veterinary

FOB Reference Price:Get Latest Price
$14,500.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Ysenmed
Model Number:
YSX050-C
Properties:
Medical X-ray Equipments & Accessories
Instrument classification:
Class II
Product name:
portable digital x ray veterinary
Power supply:
AC220V± 10%, 50/60Hz ± 1Hz
Nominal output power:
100kV,40mA,0.1s,4kW
Frequency:
≥40kHz
kV adjustable range:
40kV~110kV
mA adjustable range:
40mA~70mA
Exposure time adjustable range:
0.04s~3.2s
X ray tube:
Focus: 0.6/1.5mm
Dimension:
290*260*230 mm
Weight:
18.8kg
Supply Ability
Supply Ability:
2000 Set/Sets per Month portable digital x ray veterinary
Packaging & Delivery
Packaging Details
Aluminum box & wooden case for portable digital x ray veterinary
Port
Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated

Hospital good quality flat portable digital x ray veterinary

Model: YSX050-C

YSX040-C veterinary xray machines digital





1. Composition



Main components

Parts

Model No./ Specifications

Qty

Remark

X-ray Units

Portable high frequency x-ray unit

YSX050

1 set



X-ray tube

GF181-0.6/1.5-125-60

1 set



Collimator

YJA-6

1 pc



DR System

Digital detector

Amorphous Selenium

1 set



Sync box

YJT-3

1 set



laptop

Lenovo Y470N-IFI(H)

1 set



DR image processing software

OmniVision

1 set



Auxiliaries

Steel support

YJF-Ⅰ

1 set

Optional





2. Application



1.out relief,orthopedic hospitals, primary medical, cosmetic facial plastic surgery, ICU ward, emergency department, community health, rural health, general out-patient.

2.  for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, vet clinics, etc.



3. Features



1. Beside human beings , it can be also applicable to all kinds of animals under 100KG in weight, including Tibetan mastiff
2. 16 pre-set shooting modes, adjustable and savable
3. Analog and digital double-loop high-precision control mode to ensure stable x-rays in case of unstable powersource
4. Malfunction self-protection and self-diagnosis, self-protection and alarming is in case of malfunction withtraceable fault codes for easy maintenance



4. Specifications



  Model

YSX050-C

 Power supply



Voltage: AC220V± 10%, 50/60Hz ± 1Hz

Capacity: ≥5kVA

Internal resistance: ≤0.5Ω

 Maximum output power

P =110kV×36mA=4kW

Nominal output power

100kV,40mA,0.1s,4kW

Frequency

≥40kHz

kV  adjustable range

40kV~110kV, continuous regulation, stepping 1kV

mA  adjustable range

40mA~70mA

mAs adjustable range

1mAs-200mAs,continuous regulation, stepping 1kV

Exposure time adjustable range

0.04s~3.2s

X ray tube

Focus: 0.6/1.5mm,

Thermal Capacity: 76kHU

Digital detector



Limit resolution: 3.9LP/mm;

A/D convert:14bit;

Pixel region: 264×325mm;

Pixel matrix: 2080×2560;

Notebook Computer



a) Model: Lenovo Y470N-IFI(H)

b) Processor: Intel Core i5-2410M(2.3GHz)

c) Memory capacity: 4GB

d) Hard disk: 750GB

e) Screen size: 14inch

Anatomical program

24 memory choices available

Dimension

290×260×230 mm

Weight

18.8kg

Accessories

Standard: manual switch,cable

Optional: mobile steel support





5. Product picture

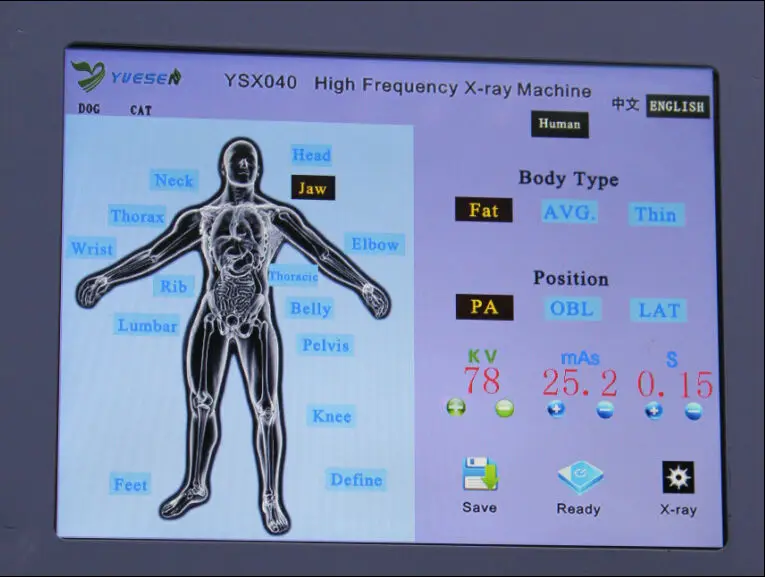

The touch screen of x ray machine :



4.0 kw flat panel detector medical mobile portable digital x ray

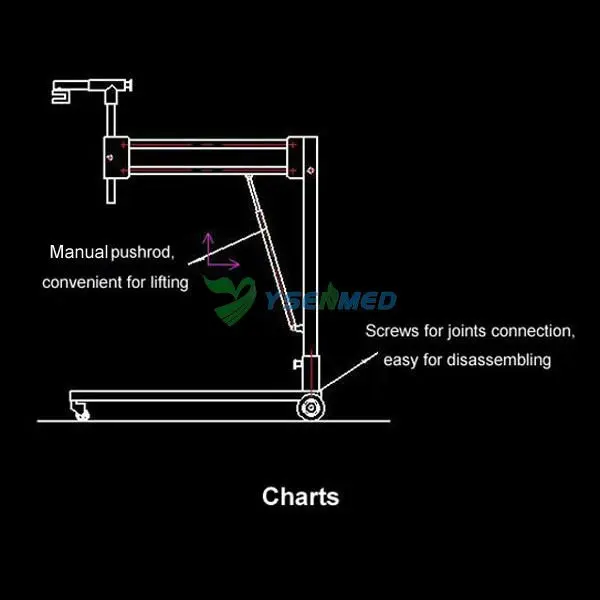

The mobile stand and its structure



 4.0 kw flat panel detector medical mobile portable digital x ray

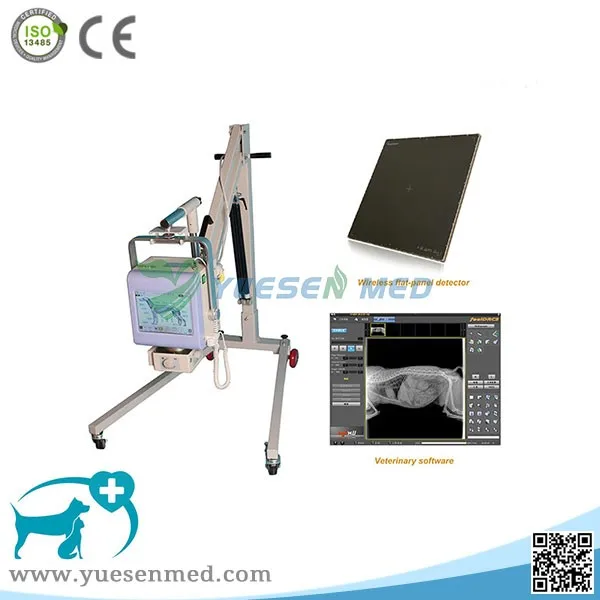

Image:

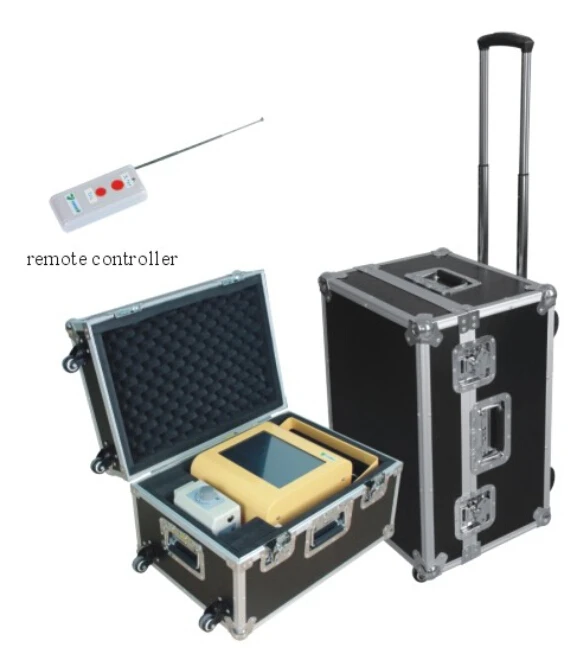

The package:



4.0 kw flat panel detector medical mobile portable digital x ray

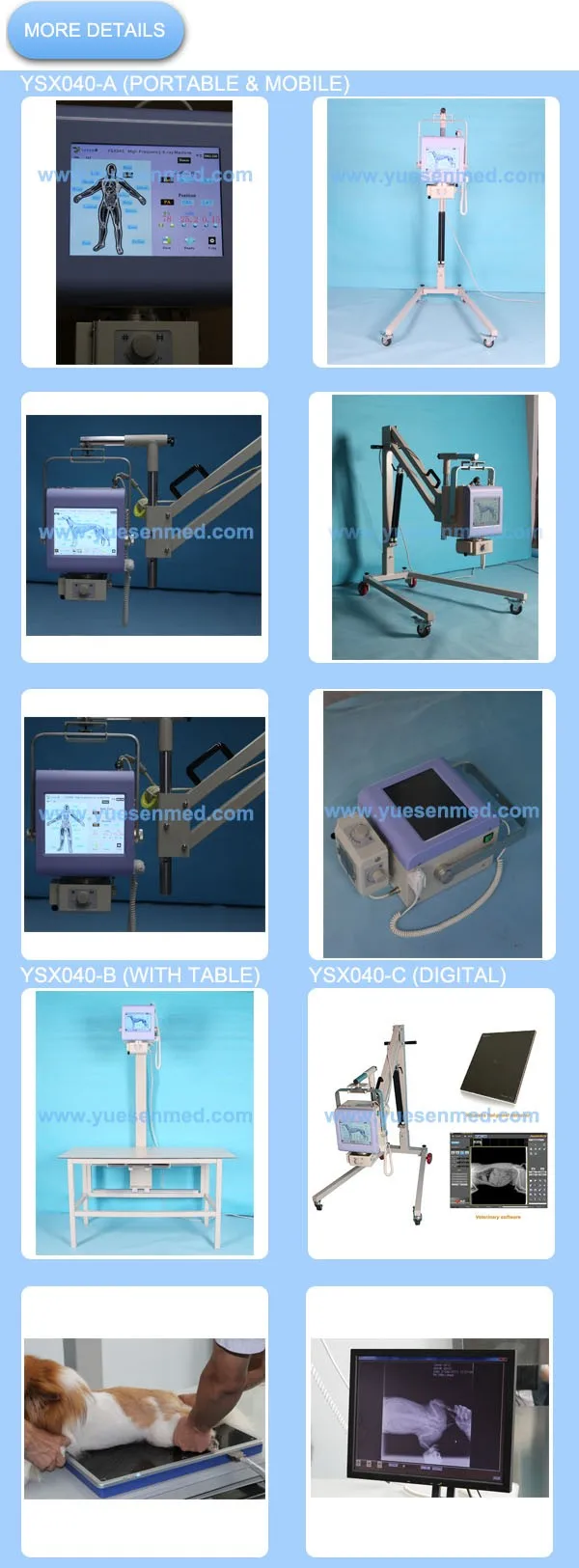

02 More Details for Portable and mobile digital x ray machine YSX040-A YSX040-B YSX040-C03 Packing & Shipping for X RAY ysx040-a ysx040-b ysx040-c
