YSB5600 Low Price hot sale model digital BW laptop ultrasound scanner

FOB Reference Price:Get Latest Price
$1,350.00 - $3,000.00 / Set | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
YSMED
Model Number:
YSB5600
Type:
Portable Ultrasonic Diagnostic Devices
Instrument classification:
Class II
Monitor:
10.4" high resolution color LCD
Body mark:
64 body marks with probe position
Display mode:
B,2B,4B ,B/M,M, total 5 kinds
Gain range:
0~127dB
Dynamic range:
27~100dB
Gray:
256
Intelligent TGC control:
8 segments
Acoustic power:
16 grades digital ultrasound diagnostic equipment
Frame frequency:
30 frames/second
Pseudo-color:
8 kinds (incl. B/W)
Supply Ability
Supply Ability:
500 Set/Sets per Month ultrasound scanner
Packaging & Delivery
Packaging Details
Standard export packing for ultrasound scanner
Port
Guangzhou

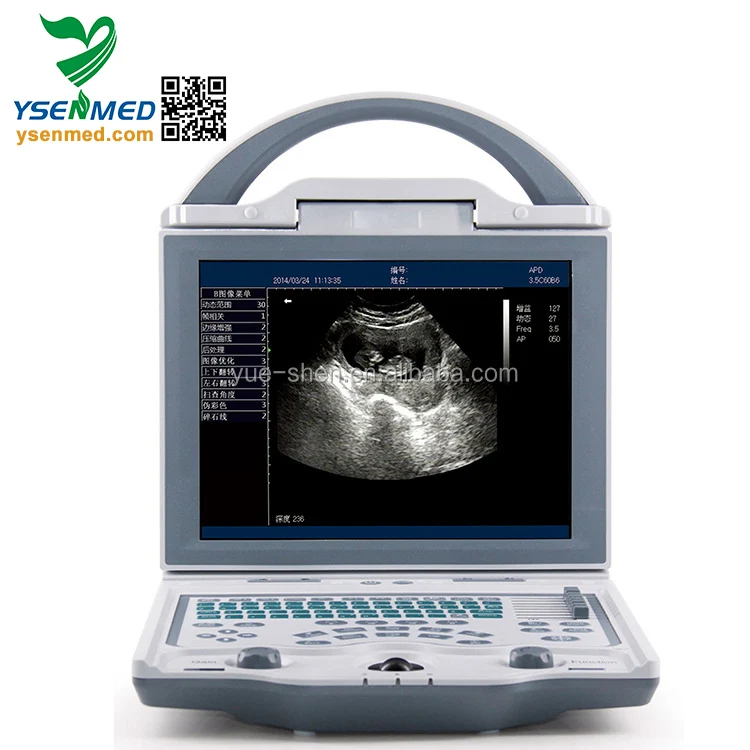

YSB5600 Low Price hot sale model digital

BW laptop ultrasound scanner





2017-7-7_01



YSB5600 Portable echoYSB5600 ULTRASOUND

ultrasound scanner

ultrasound scanner

2017-7-7_02



Parameter:

10.4' high resolution color LED backlight display, with high contrast and wide viewing angle

Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable

Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese

Two probe sockets, auto-identify different optional probe

Body marks:total 64 kinds body marks indicating probe position

Display mode:B,2B,4B ,B/M,M

Adjustable depth: 10 grades, max depth to 236mm

Contrast:27~90dB

Gray scale:256

8 steps intelligent TGC

Frame frequency: 30 frames /second

8 kinds pseudo colors

Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off

Cine loop:256 frames

Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)

The gravel software package with real-time position line measurement

Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement

OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report

Urology measurement and analysis: residual urine volumem, prostate volume, and urology report

Dual TV output: PAL/NTSC, can connect video printer when necessary

Power supply:100-240V~ 1.2-0.6A frequency:50-60Hz

Power supply adaptor output:DC12.8V 3.0A

Main unit weight:4.5kg(without accessories)

Main unit dimension:256×150×326mm(L×W×H)



YSB5600 Portable USGYSB5600 Laptop usg

Main basic configuration:

1. Main unit
2. 3.5MHz convex probe

Optional parts:

1. 6.5MHz multi-frequency trans-vaginal probe
2. 7.5MHz multi-frequency linear probe
3. Li-battery
4. Trolley
5. Charger
