YSX500D cheap price top quality flat panel detector 500mA 50kw digital radiography system

FOB Reference Price:Get Latest Price
$30,000.00 - $35,000.00 / Sets | 1 Set/Sets for digital radiography system (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Properties:
Medical X-ray Equipments & Accessories
Brand Name:
Yuesenmed
Model Number:
YSX500D
Place of Origin:
China
Name:
digital radiography system
Functions:
Digital x-ray radigography, x-ray filter radiography etc.
Nominal electric power:
50 kW
Tube volate:
40kV~150kV
Tube current:
10mA~630mA
Time:
2ms~10s
mAs:
0.1mAs~630mAs
Working frequency:
≥400kHz
Control panel:
LCD touch screen
Focus:
Small focus:0.6mm; Big focus:1.2mm
Supply Ability
Supply Ability:
1000 Set/Sets per Month for digital radiography system
Packaging & Delivery
Packaging Details
plywood case for digital radiography system
Port
Guangzhou,China for digital radiography system
Lead Time :
15-20 workdays after pay for digital radiography system

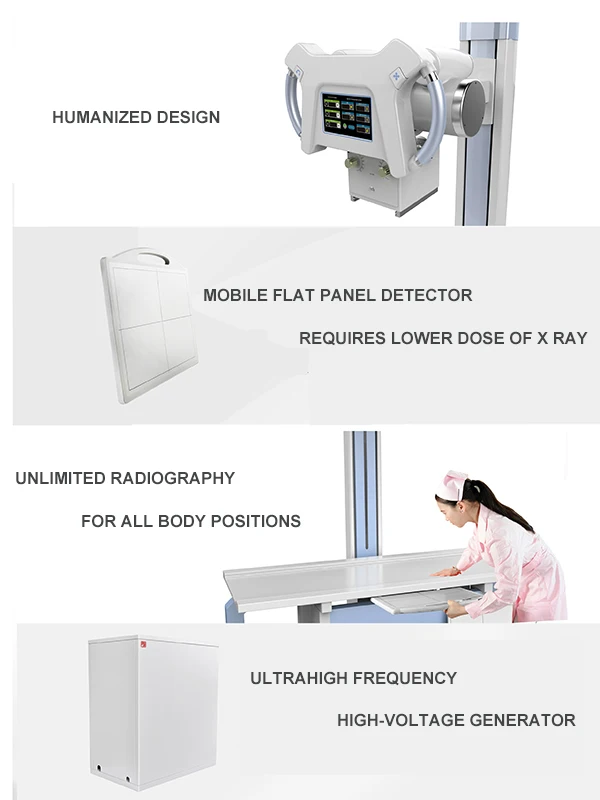

cheap price top quality flat panel detector 500mA 50kw digital radiography system

Model:YSX500D

1 High Frequency Generator

1.1 Functions: Digital x-ray radigography, x-ray filter radiography, buck stand radiography, ARP and AEC.

1.2 Nominal electric power: 50 kW

1.3 Tube volate: 40kV~150kV

1.4 Tube current: 10mA~630mA

1.5 Time: 2ms~10s

1.6 mAs: 0.1mAs~630mAs

1.7 Working frequency: ≥400kHz

1.8 Control panel: LCD touch screen



2 X-ray Tube

2.1 Max. Tube voltage: 150kV

2.2 Focus:Small focus:0.6mm; Big focus:1.2mm

2.3 Anode input power: small focus 19kW, big focus 50kW

2.4 Target angle: 12°

2.5 Anode RPM:2800rpm

2.6 Heat capacity: 150kHU

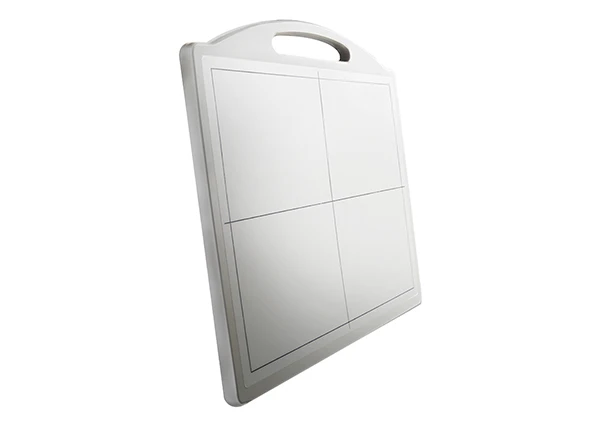

3 Flat Panel Detector

3.1 GOS & Csl

3.2 Size: 35×43cm(14×17 inch)

3.3 Pixel: 140μm

3.4 Pixel matrix: 2560×3072

3.5 A/D conversion: 16Bit

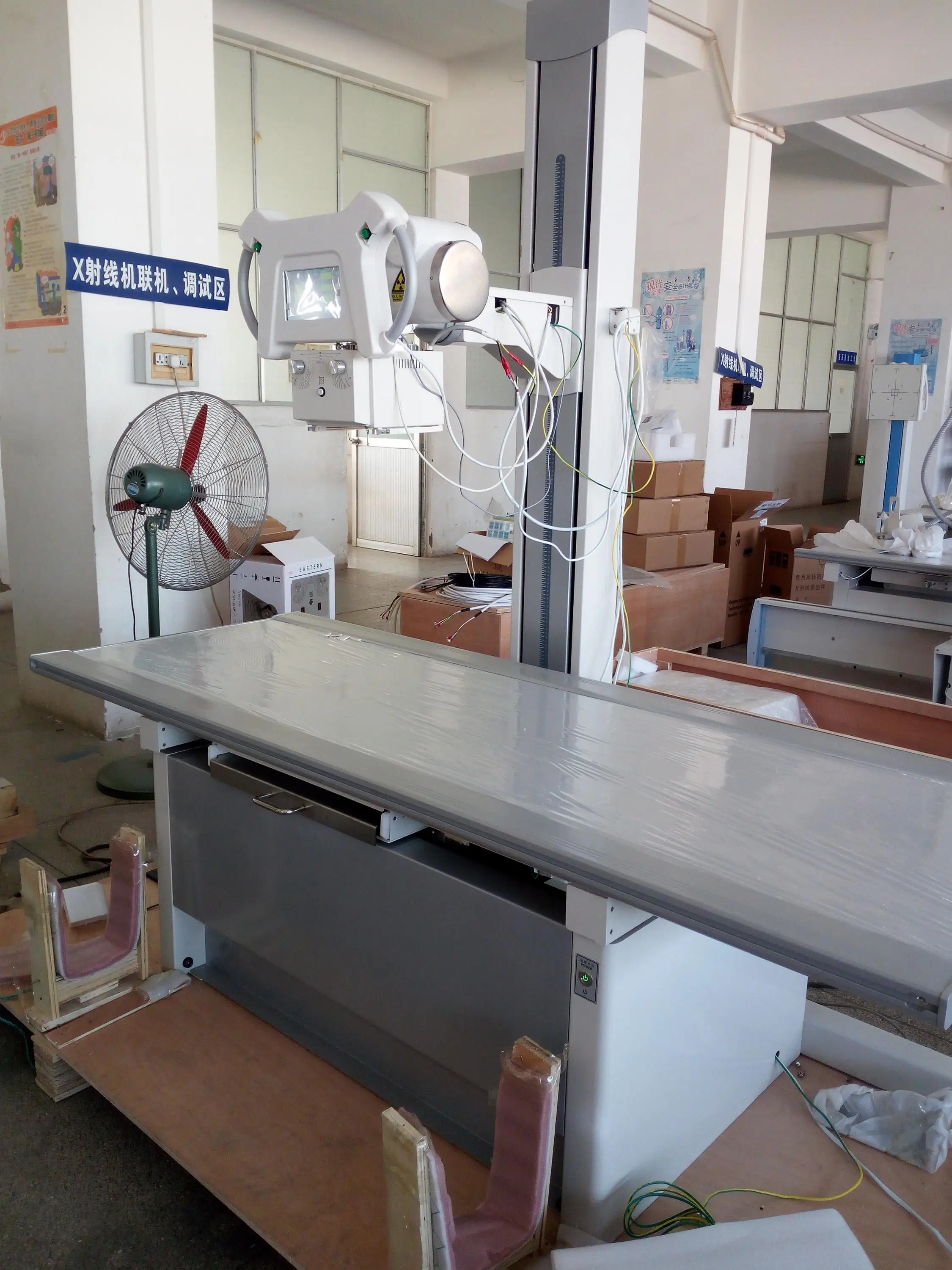

4 Radiography Table

4.1 Size: 2100mm×825mm×655mm (LxWxH)

4.2 Horizontal moving range: ≥250mm;

4.3 Lengthways moving range: ≥825mm;

4.4 Table top lock: Electromagnetic lock, braking force≥100N, with pedal switch, flexible and convenient.

4.5 With electric or manual control of mechanical movement, and there is automatic tracking alignment function with the x-ray tube and the detector.

4.6 Grid size: ≥15"×18";Grid focus distance: f0=100cm; Grid ratio: r=10 :1;Grid density: N=103Lines/Inch

4.7 Tube Column

4.7.1 Secure and solid structure

4.7.2 Column rotation: ≥±180°

4.7.3 Moving range along the table: ≥1575mm, can be locked at any point

4.7.4 Tube moving up & down: 930mm±10mm, an be locked at any point

4.7.5 Tube rotation: ≥±180°

4.7.6 Max. Distance from tube focus to film: ≥1200mm.



5 Bucky Stand

5.1 Up & Down moving range: ≥1200mm;

5.2 At max. Height, the distance between the floor and the box center is ≥1500 mm;

5.3 Grid size: 18×18";Grid focus: f0=180cm;Grid ratio: r=10 :1;Grid density: N=103Lines/Inch



6 Collimator: Flexible and convenient to operate, and any rectangle radiography field size is available.



Packing List (YSX500D)

NO.

Part Names

Qty



Remarks

1

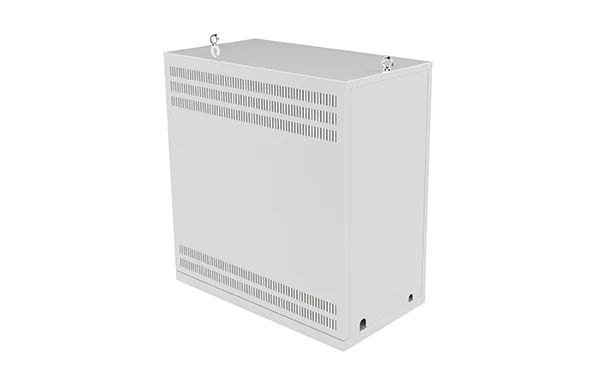

High Frequency Generator

1 pc





2

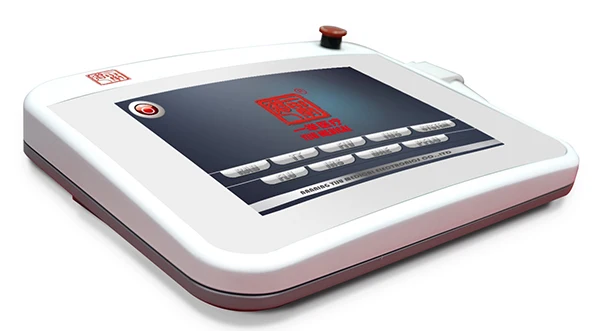

Control Panel

1 pc





3

X-ray Tube

1 set





4

Collimator

1 pc





5

Flat Panel Detector with Software

1 set

14*17



6

Bucky Stand

1 pc





7

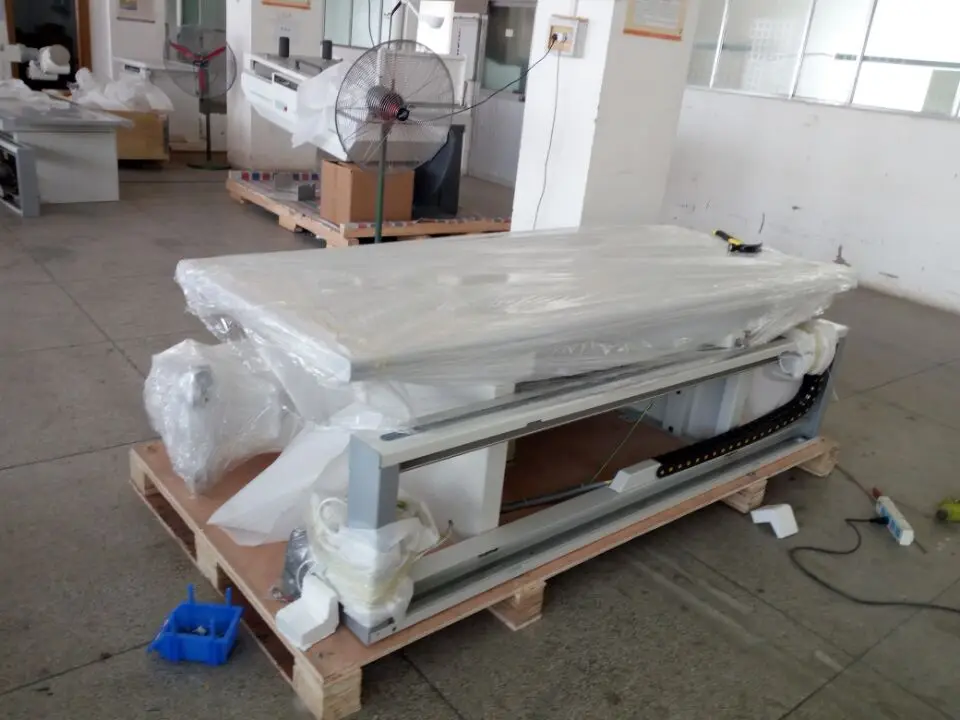

Radiography Table

1 pc





8

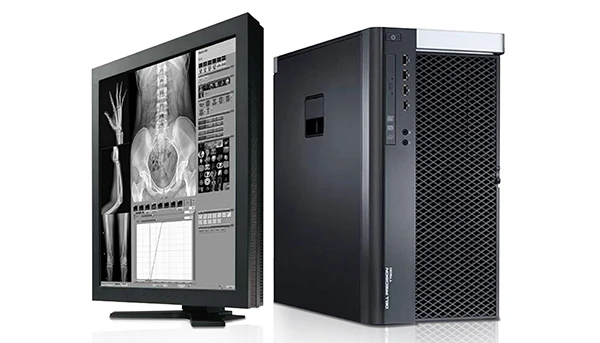

Workstation (Computer)

1 set

--



9

Grid

2 pc

18"×18"

JPI

10

High Voltage Cable

1 pair

75kV
