YSX100GM High Performance medical 100mA digital movable mobile x ray machine equipments

FOB Reference Price:Get Latest Price
$5,587.00 - $7,158.00 / Sets | 1 Set/Sets mobile x ray machine equipments (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Properties:
Medical X-ray Equipments & Accessories
Brand Name:
YUESEN-MED
Model Number:
YSX100GM
Place of Origin:
Guangdong, China
Input Voltage:
220V±10%
Input Power:
5.5kW mobile radiography machine
Mains Frequency:
50Hz±1Hz
Source Resistance:
≤0.5Ω
Power Modules:
30kHz
Filament Frequency:
20kHz
Focus:
1.5mm
Max:
Generator Output: 3.5kW/5kW
Max. X-Ray Tube Voltage:
110KV/120KV
kV Range:
40~120kV
Supply Ability
Supply Ability:
1000 Set/Sets per Month mobile x ray machine equipments
Packaging & Delivery
Packaging Details
Standard export packing for x-ray machine
Port
Guangzhou
Lead Time :
Within 7-10 days after payment

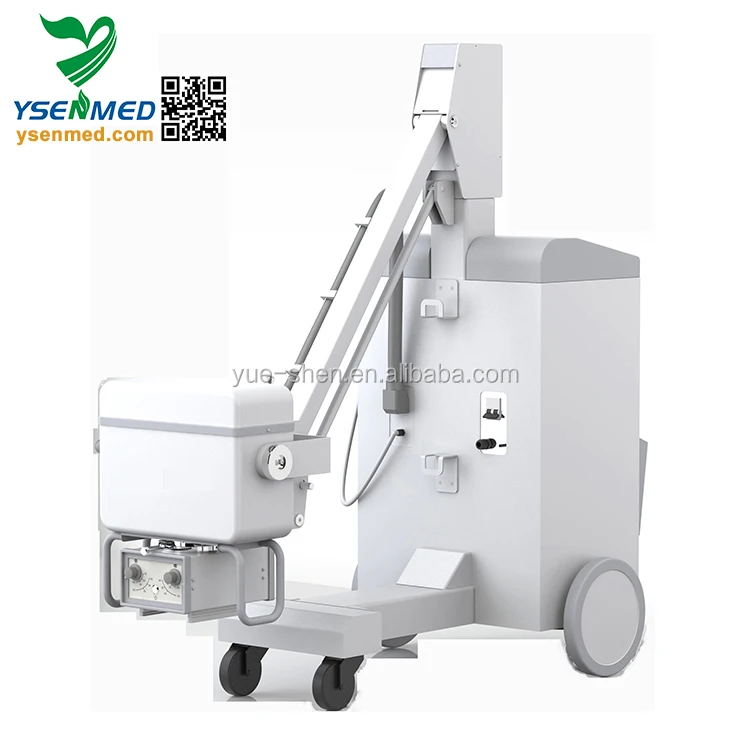

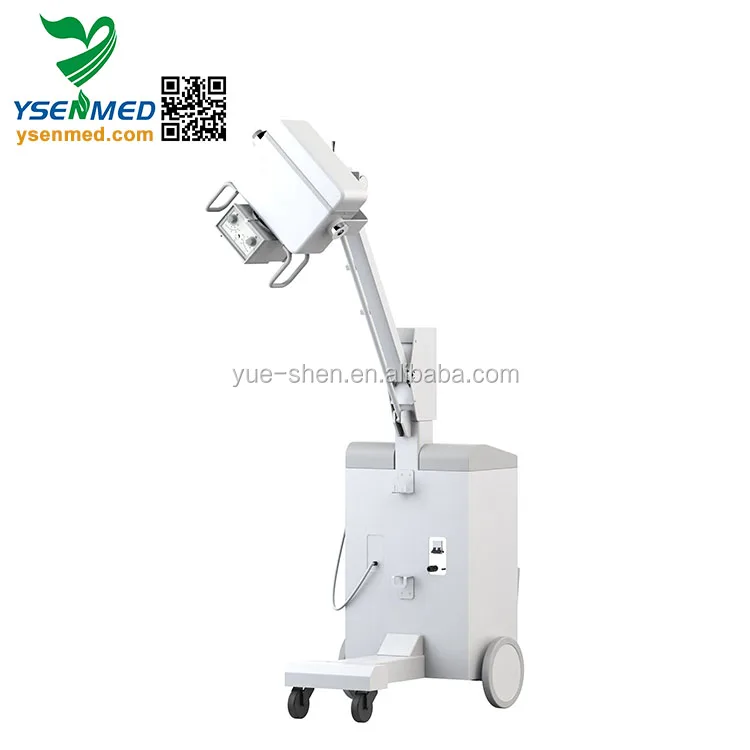

High Performance medical 100mA digital

movable mobile x ray machine equipments







YSX100GM





 x-ray ma

m

radiography x ray unit

Technique Specification



Model

YSX70GM

YSX100GM

Power

Input Voltage

220V±10%

Input Power

5.5kW

7.5kW

Mains Frequency

50Hz±1Hz

Source Resistance

≤0.5Ω

Main Technical Parameters

Power Modules

30kHz

Filament Frequency

20kHz

Focus

1.5mm

Max. Generator Output

3.5kW;

5kW

Max. X-Ray Tube Voltage

110KV

120KV

kV Range

40~120kV

mAs Range

1~125mAs.

1~200mAs

Main Parameters Of Mechanical Parts

X Ray Tube Vertical Motion Range

≥500~1750mm

X Ray Source Components Around The Cross Arm Vertical Rotation:≥±90°.

Exposure Size

≥350mm*350mm(SID=65cm)

Machine Main Function.

Fault Detection Error Prompt Functions.

ARP Human Anatomy Program Function.

Parameter Calibration Function.



Combined X-Ray Tube Assembly for High Frequency Mobile X Ray Unit :

1,Adopt high frequency high voltage generator and combined X-ray tube assembly;

2,kV closed-loop control, stable output, good repeatability, quick response and high accuracy;

3,mAs digital closed-loop control technology and 32-bit microprocessor real-time control, which ensure the accuracy and repeatability of dosage;



Inverter for  High Frequency Mobile X Ray Unit:

1,Equipped with the functions of high voltage and over & under voltage protection, tube current over-current protection, output overload protection and fault prompt;

2,Perfect heat capacity protection function to protect X-ray tube target surface;



Corrugated Pipe:

Full consideration of hospital disinfection and cleaning, adopt high quality corrugated pipe, prolonging the service life of the equipment



Switch

Using high quality switch, safe and reliable, stable quality



Wheel

The machine moves very flexible, lightweight, even in a small space can also smoothly, quickly through



X Optical Imaging:

The high-frequency high voltage technology and computer control technology integration, parameter, image definition

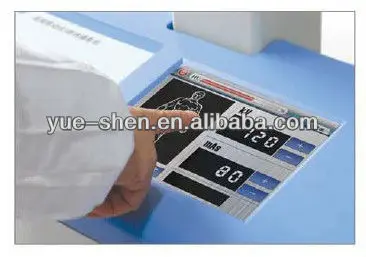

Touch Screen

1,Touch screen regulation, color screen display, and dual core control;

2,Anatomical procedures are established. The users can also change the parameters on their own.

3,Of ergonomical structural design, easy and convenient to operate.



Remote Control

Remote equipment control, digital coding control, anti-jamming





Our mission: To become leading supplier of medical equipments and services for the primary hospitals around the globe!



color screen display and dual core control YSX70GM-B 3.5KW 5KW HighFrequency Mobile X Ray Unit











x-ray machine

 x-ray machine









Contact me to let me know your specfic request. I would like to recommend you the most suitable model based on your information.
