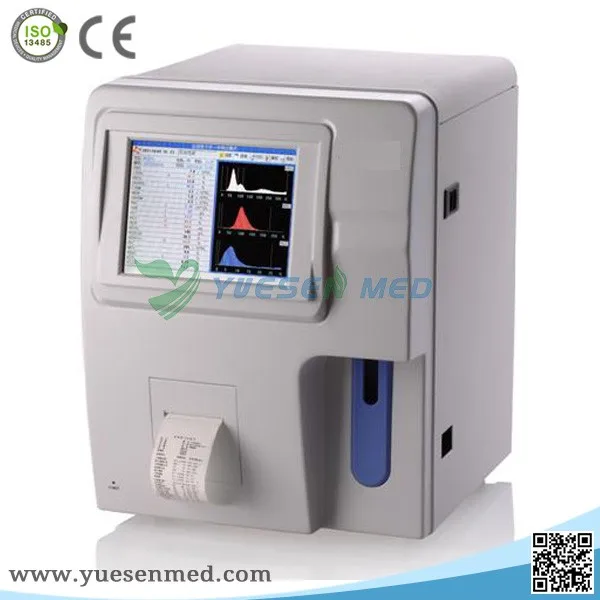

Lab auto blood analyzer machine blood cell counter price fully blood count analyzer full auto hematology analyzer

FOB Reference Price:Get Latest Price
$2,300.00 - $2,350.00 / Set | 1 Set/Sets (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
Blood Analysis System
Instrument classification:
Class II
Model name:
blood machine
60 samples test per hour
Oower supply:
220V ± 22 VAC, 50 ± 1 Hz
Detecting Body Health
Medical Hematology
1 Year
Product name:
hematology analyzer
10.4 inch
Supply Ability
Supply Ability:
1000 Set/Sets per Month blood machine
Packaging & Delivery
Packaging Details
Lab auto blood analyzer machine blood cell counter price fully blood count analyzer full auto hematology analyzer

Lab auto blood analyzer machine blood cell counter price fully blood count analyzer full auto hematology analyzer

hematology analyzer.jpg

1. Highlights

User-friendly interface

10.4 inch true color TFT LCD & touch screen, more visible

Minimize the number of interface layers, pop-up soft keyboard, easy to operate

Internationalization support

Possible choice of parameter units. Several languages available, can switch language online

Provide various anemia indications

Normocytic and normochromic anemia, Macrocytic and normochromic anemia, Microcytic hypochromic anemia, Microcytic anemia

Provide text of alarm information

Text of alarm information is clearer than alarm character provided by traditional 3-part analyzer, such as R1, Rm and Pm

Automatic blank counting

Automatically start a blank counting and auto-assessment of the results during start-up process

Automatic re-counting

Automatically re-count after unclogging treatment while a counting hole is clogged, avoid re-collecting blood

Wider linearity range & excellent repeatability

Maintenance-free syringe

Built-in patented structure thermal printer. Easy to load paper, and fast print of large size report

Paper 80mm wide. Report printing takes only 5 seconds

State-of-the-art technology

Sweeping flow technology, Pulse discrimination technology, intelligent floating threshold technology


2. Product Specifications

Measuring Principles

Impedance method for cells counting

Cyanide free colorimetric method for HGB measurement

Measuring Channels

Double channel for counting


From beginning of a test to completion of the printout: ≤60 Seconds

Counting Modes

Whole Blood, Pre-diluted Blood

Sample Volume

Whole Blood: ≤14µL

Pre-diluted Blood: ≤20µL

Parameters & Histograms

21 parameters and 3 histograms:

WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LCC, WBC Histogram, RBC Histogram, PLT Histogram

Reference Value Settings

Preset five sets of reference values: Man, Woman, Child, Baby and General

Alarm System

Multiple alarms of running status including blank counting abnormal, reagents empty, waste full, counting hole clogged, counting area leak or bubble, recorder abnormal, external printer abnormal and circuit abnormal, etc

Measures of Unclogging Treatment

Back flushing, soaking and burning. Automatic unclogging treatment before and after the sample analysis


English print report, optional report formats


Can store more than 10,000 sample results, including parameters, histograms and patient information. Support multiple conditions combination query


Open communication protocol. Support connection to LIS

Data Import & Export

Import or export data via USB port

Quality Control System

Include 9 QC files, automatically draw quality control chart, provide the average, SD, CV

Calibration System

Support manual and automatic calibration

Software Upgrading

Upgrading software via USB port

Display & Touch Screen

10.4 inch true color TFT LCD and touch screen


Built-in patented structure thermal printer, paper 80mm wide, easy to load paper. Report printing takes only 5 seconds

Data Ports

One network port, one RS-232 port, four USB ports

Optional External Devices with USB Port

Standard 101 keyboard, mouse, barcode scanner and multiple printers


220V, 50Hz  Input power: ≤150VA

Operating Environment

ü Environment Temperature: 10 ℃~30℃

ü Relative Humidity: ≤70%

ü Atmospheric Pressure: 70.0kPa ~106.0kPa


368mm x 448mm x 475mm





fully automatic medical blood test laboratory equipment

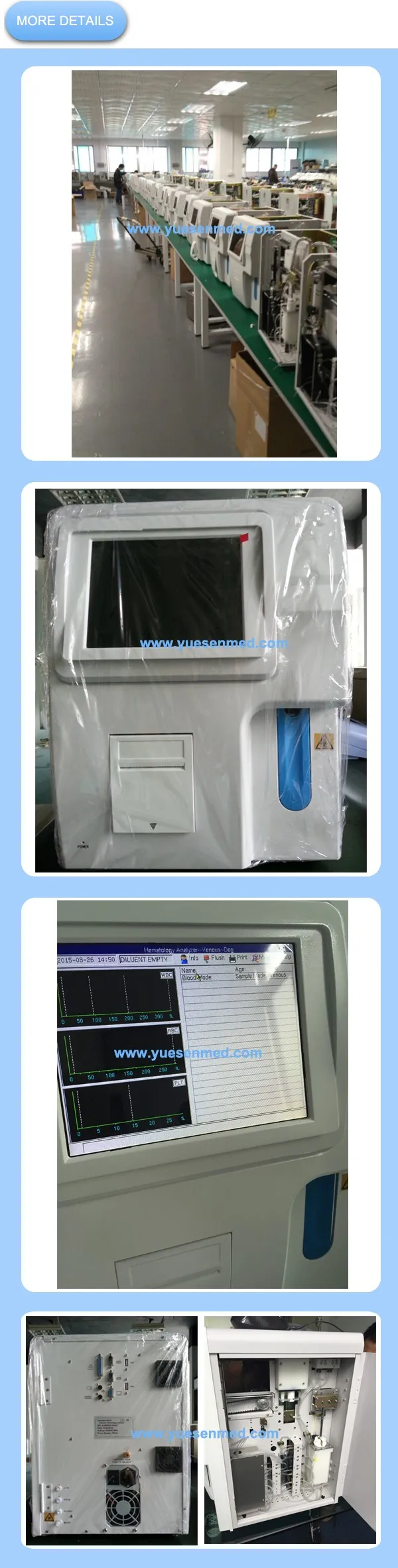

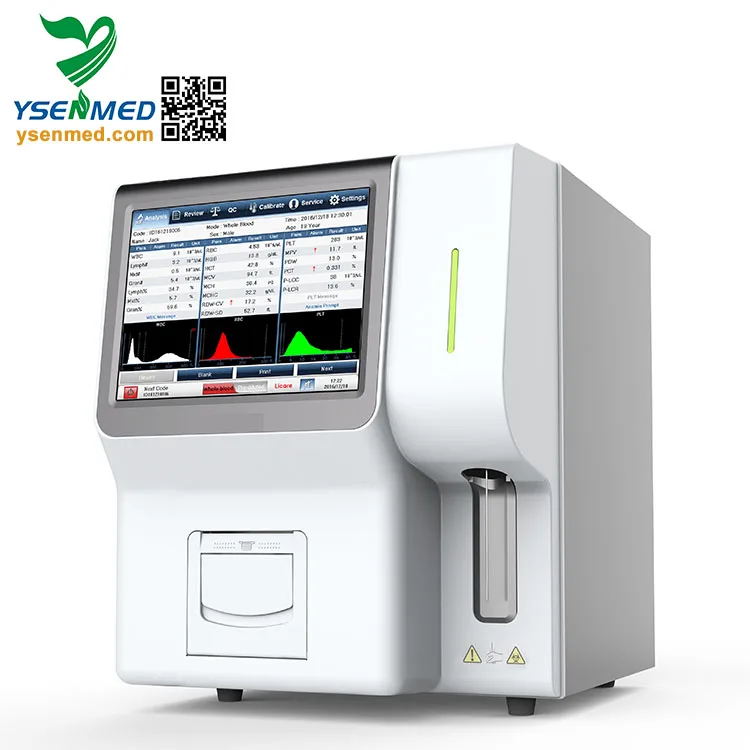

YSTE880 automatic blood analyzer02 More Details of yste880 YSTE900 fully automatic blood analyzer



Automatically cleaning sampling probe, windows interface all testing parameter displayed simultaneously, PC connecting.



1. 3part differentiation of WBC, 22 parameters, up to 45 samples test per hour

2. Classic fluid pipe design, larger result Linear Dynamic Range
3. Advanced ARM Intelligent digital processing technology
4. Three independent operation model: Figure button, mouse, international Key-board
5. Automatically cleaning sampling probe(inside and outside)
6. 8.4” color TFT, Windows interface all testing parameter displayed simultaneously
7. Large storage capacity: up to 10,000 samples +3 histograms
8. Low sample volume 10~40ul, high precision microanalysis
9. Internal thermal-sensitive printer or external printer
10. RS232 interface, PC connecting



Technical performance indicators
1,working principle: electrical impedance counting,optical colorimetric measurement of hemoglobin
2 operating modes: a hemoglobin count channel + independent test system
3, using advanced diaphragm technology, the use of high-quality imported valves , long life, do not plug ; eliminate the cost pressure pipe valve life is short , snap inability phenomenon.
4 , using the latest international technology volumetric time , eliminate the traditional ball float volume measurement, error of measurement, a variety of prolonged failure meniscus volume metering tube prone to eliminate the false plugging holes, etc. Symptom
5 , the use of high-quality industrial-grade computer control panel , high performance, long life , stable and so on.
6 , minimal sample volume , 9.6 ~ 40uL adjustable, truly trace count , no machine outside the pre-dilution
7, using real-time monitoring of high-voltage ignition , soak and intelligent recoil Paidu , avoid plugging holes
8 , two swirling flow and intelligent fitting technology to ensure stable and reliable platelet count
9 , floating landmark intelligent support manual adjustment
10 , the inner and outer surface of the needle -like suction automatic cleaning function
11 , and alarm detection reagents margin , closed fluid path , to avoid contamination
12 , modular design, circuit , fluid path separated from each other door -type structure, easy maintenance and efficient maintenance
13, WINDOWS color interface, graphical button operation , saving time and effort
14,8.4 inch color LCD screen , with the screen displays all test parameters and histograms , intuitive interpretation of abnormal results
15 , built a variety of print drivers , print the report in English , optional external stylus printer
16 , networking , remote consultation
17 , 24 hours of continuous , automatic sleep and wake-up function .
18 Calibration : automatic calibration , manual calibration
19 Accuracy : Parameter Linear Range Accuracy (CV value )
WBC (109 / L) 0.0-99.9 ≤ 2%
RBC (1012 / L) 0.00-9.99 ≤ 1.5%
MCV (fL) 40-150 ≤ 0.5%
PLT (109 / L) 0-999 ≤ 4.0%
HGB (g / L) 0.0-300.0 ≤ 1.5%
20 , quality control : X-B, L-J,, SD, CV%
21 , the result is stored : Auto store more than 100,000 copies of the full sample parameters +3 histograms , support a variety of combinations of query conditions
22 , the reference value is set : adult male, adult female , children, newborns, five kinds of common reference value is set
23 , information input : support for multiple fast Chinese input , you can enter that contains the name, department , and other patient information submission by
25 , Display : Large 8.4 -inch color LCD screen
26 Printing : print driver to print a variety of built- in reports in English , optional external printer
27 , Interface : RS232, USB, parallel port, serial port, keyboard port, mouse port
28 , the working environment : temperature 10-35 °C, humidity 10-90 % , can be used in high altitude
39 , power supply : 220V ± 22 VAC, 50 ± 1 Hz
30 , Dimensions : 40CM (L) * 40CM (W) * 46CM (H)
31 , Weight : 26KG


Test items:
1, WBC ( white blood cell number ) Lymph # ( number of lymphocytes )
Mid # ( the number of intermediate cells ) Gran # ( number of neutrophils )
Lymp5h% ( percentage of lymphocytes ) Mid% ( the percentage of cells in the middle )
Gran% ( the percentage of neutrophils )
2, RBC ( the number of red blood cells ) HGB ( hemoglobin )
HCT ( hematocrit ) MCV ( mean corpuscular volume )
MCH ( mean corpuscular hemoglobin )
MCHC ( mean corpuscular hemoglobin concentration )
RDW-CV ( red blood cell distribution width coefficient of variation )
RDW-SD ( red blood cell distribution width standard deviation )
3, PLT ( platelet count )
MPV ( mean platelet volume ) PDW ( platelet distribution width )
PCT ( platelet hematocrit ) L-PCR ( large platelet ratio )
4 Distribution : WBC, RBC, PLT color histogram volume distribution
